Máy test cáp mạng đa năng có PING/POE NAYOFA NF-8601
Còn Hàng
Giá: Liên hệ
Còn Hàng
Mô tả

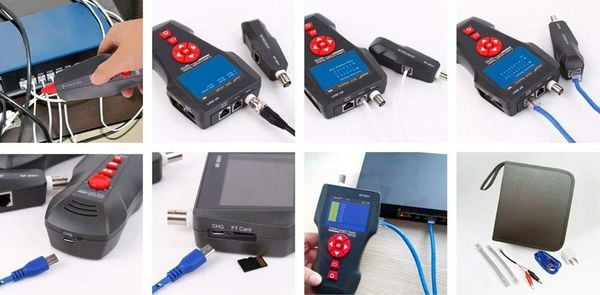

Máy test cáp mạng đa năng có PING/POE NAYOFA NF-8601
Main function:
- PoE / PING testing.
- Trace targeted cable among lots of unknown cables ;
- Port flash function help trace lan cable connected to swticher or router visually, no need of receiver.
- Capable of scanning cable on PoE switch without damaging the device.
- Locate faults for RJ11/RJ45/BNC Cable;
- measure cable length accurately
- Voltage detecting function.
- Memory and storage function, export or upload the data from PC.
- Lithium battery and color screen.
| Technical indexes: | |
| NF-8601 Transmitter specifications | |
| Indictor | LCD 320×240 mm, with backlight |
| Cable test types | STP/UTP 5E,6E network , telephone , coaxial cable. |
| Max. distance of wiremap | 2000 m |
| Max. distance of tracing | 2000m |
| Max. distance of cable length | 1000 m |
| Min. distance of calibration | 10 m |
| Accuracy | 3% ( after calibration ) |
| Compatible connectors | RJ11，RJ45, BNC, PING/POE |
| Cable map indication | LCD (#1-#8) |
| Battery Type | 3.7V lithium battery 1800mAh |
| Work temperature / humidity | 10℃ ~ -60℃ / 0℃~70℃ |
| Dimension(LxWxD) | 173x92x34mm |
| NF-8601 Receiver specifications | |
| Cable hunting | RJ11，RJ45, BNC |
| Types of cable | ≥ 2 cores |
| Battery Type | 3.7V lithium battery 1800mAh |
| Dimension(LxWxD) | 183x58x35 mm |
| NF-8601 Remote unit specifications | |
| Compatible connectors | RJ11，RJ45, BNC |
| Dimension(LxWxD) | 106x32x30mm |
Accessories Included:
- Bulit-in battery x 2 set
- Adapted telephone line x 1 set
- Adapted network cable x 1 set
- Cable clips x 1 set
- Charging adaptor x 1 set
- Carry case x 1 set
